BGS GeoSure 5km Hex Grid

BGS Datasets

Key information

Scale:
5 km hex grid (approx. 1:5 000 000)
Coverage:
Great Britain
Availability:
Free
Format:
GIS polygon data (ESRI).
Price:

Free for commercial, research and public use under the Open Government Licence. Please acknowledge the material

Uses:
National-level use

Get Data

Free access

Our free data is available under the Open Government Licence. Please acknowledge reproduced BGS materials.

Download (pdf)Download GIS (shapefile format)Download OGC GeoPackage
Supporting documents

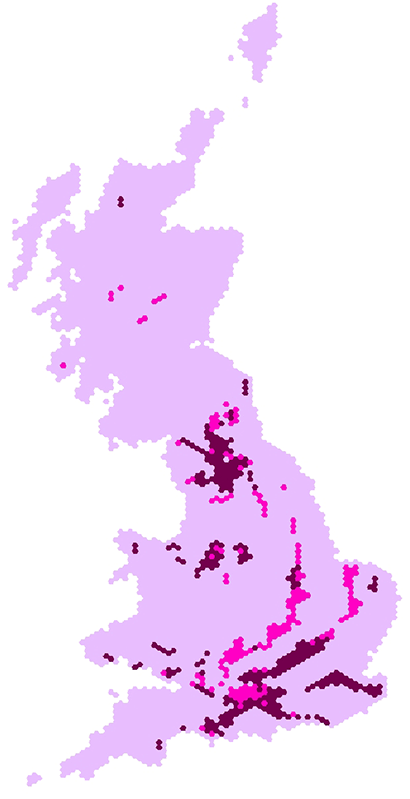

The BGS GeoSure 5 km hex grid datasets provide a generalised overview of the susceptibility to six naturally occurring geohazards in Great Britain. The hexagon grid provides a national-scale summary of the GeoSure data product. The detailed GeoSure dataset is also available to licence and provides further detail at a scale of 1:50 000.

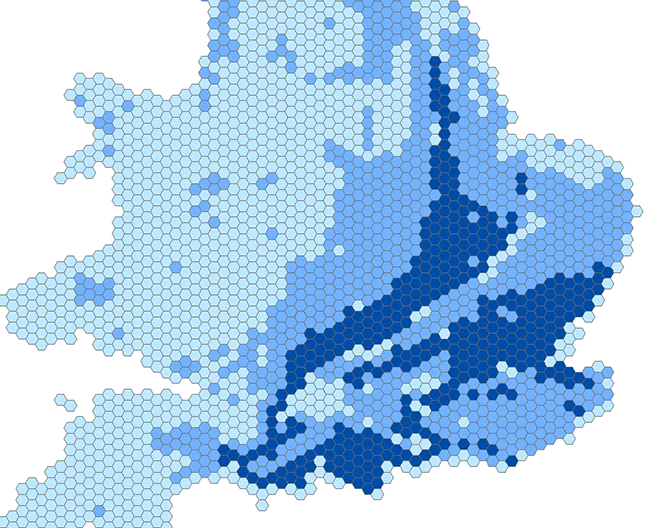

The 5 km hex grid data has been generalised into a vector map of interlocking hexagon cells (a side length of 5 km), with an area approximately 65 km2. There are three classes included within the data: low, moderate and significant.

The six layers of data provided are as follows:
