BGS Civils: excavatability

BGS Datasets

Key information

Scale:
1:50 000
Coverage:
Great Britain
Availability:
Licensed
Format:
GIS line and polygon data (ESRI, MapInfo, others available by request)
Price:

BGS Civils bundle (all eight layers) £0.50 per km2

BGS Civils individual layers £0.30 per km2

BGS Civils web viewer (subscription service) £500 for the first layer, £100 for each additional layer. £1000 for all layers.

All products are subject to number of users and licence fee. BGS Civils bundle and individual layers are also subject to a data preparation fee.

Uses:
Local-level use

Get data

Free access

Our free data is available under the Open Government Licence. Please acknowledge reproduced BGS materials.

Sample data download
Supporting documents

BGS Civils is a suite of national maps of engineering properties based on geological data and the digital 1:50 000-scale geological map — BGS Geology 50K.

It comprises eight layers:

The primary goal of the product is to provide the key engineering characteristics of the geology of Great Britain to professional users who need simple and rapid access to such information. You might be planning pipeline routes avoiding difficult ground conditions, calculating tender costs for trench excavation or you might need knowledge of ground properties in order to plan your daily activities.

The data is provided as GIS shapefiles that are available to licence individually or as a bundle to meet your own requirements.

This dataset

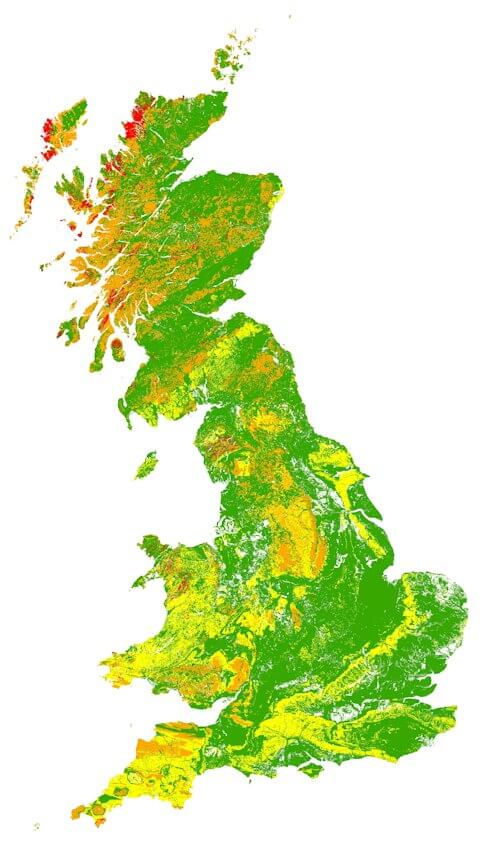

This theme provides information on the excavatability of geological deposits at surface. The values supplied are the indicative minimum, maximum and typical values we would normally expect to encounter per geological unit but limited to the top 2–3 m.

The spatial model covers England, Scotland and Wales at 1:50 000 scale and is based upon bedrock and superficial geology from BGS Geology 50K, archive data of engineering soil strength from the National Geotechnical Properties Database coupled with the Soil Parent Material Map and displayed via dictionaries of ‘excavatability classes’.

Excavations are dug for a range of civil engineering purposes including cuttings, borrow pits and quarries. Typically excavations to 2–3 m are for foundations, utilities infrastructure, cellar construction, grading and burial pits.

What is excavatability?

Excavatability is a measure of how easy it is to remove earth materials and is used to determine appropriate excavation methods. It is a function of the geotechnical properties of the material (strength or density) and mass characteristics, in particular mechanical discontinuities.

The stronger the material, the more difficult it is to penetrate, break and consequently remove. However, mechanical weaknesses, in particular discontinuities, are exploited to aid excavation. A very strong rock may be readily excavatable if it has closely spaced discontinuities while a moderately strong rock with widely spaced discontinuities may require greater effort to excavate.

Additional factors that may affect excavatability include the maximum depth of penetration, bulk density, bulking volume and susceptibility to running (flow).

Definition

The description and classification of excavatability depends on the type of deposit. In engineering geology, earth materials are split into two groups: soils and rocks.

Soil

Soil is an aggregate of mineral grains or organic material that can be separated by gentle means such as agitation in water. Soil behaviour is determined by the particulate nature (specifically the particle size, shape and mineralogy), water content and material density. The mass properties of a soil are largely influenced by its material characteristics.

The principal soil types are clay, silt (fine soils), sand, gravel (coarse soils), cobble and boulder (very coarse soils). Whether the soil is classified principally as fine or coarse is dependent upon the behaviour of the material. Discontinuities affect the mass strength of some soils, primarily clay and silt.

Rock

Rock is an aggregation of minerals connected by strong and permanent forces. The behaviour of the rock material depends on the material characteristics. The behaviour of the rock mass depends on a combination of the material characteristics and the discontinuities including spacing, roughness, persistence, filling, orientation and the number of sets.

Classification

The categorisation of excavatability is based on strength data collated for geological formations as identified in the BGS Lexicon of Named Rock Units (LEX) and the BGS Rock Classification Scheme (RCS). The strength data is derived from the BGS Civils: strength dataset and from the British Standards Institute (1999) code of practice for site investigation (amended in 2003 and 2009). The classification has been further subdivided to account for regional/lateral geological variation where sufficient data exists. The degree of weathering of the geological unit has also been incorporated where possible.
