BGS Civils: discontinuities

BGS Datasets

Key information

Scale:
1:50 000
Coverage:
Great Britain
Availability:
Licensed
Format:
GIS line and polygon data. (ESRI, MapInfo, others available by request.)
Price:

BGS Civils bundle (all eight layers) £0.53 per km2

BGS Civils individual layers £0.32 per km2

Subject to number of users, licence fee and data preparation fee.

Uses:
Local-level use

Get data

Free access

Our free data is available under the Open Government Licence. Please acknowledge reproduced BGS materials.

Download sample data
Supporting documents

BGS Civils is a suite of national maps of engineering properties based on geological data and the digital 1:50 000-scale geological map — BGS Geology 50K.

It comprises eight layers:

The primary goal of the product is to provide the key engineering characteristics of the geology of Great Britain to professional users who need simple and rapid access to such information. You might be planning pipeline routes avoiding difficult ground conditions, calculating tender costs for trench excavation or you might need knowledge of ground properties in order to plan your daily activities.

The data is provided as GIS shapefiles that are available to licence individually or as a bundle to meet your own requirements.

This dataset

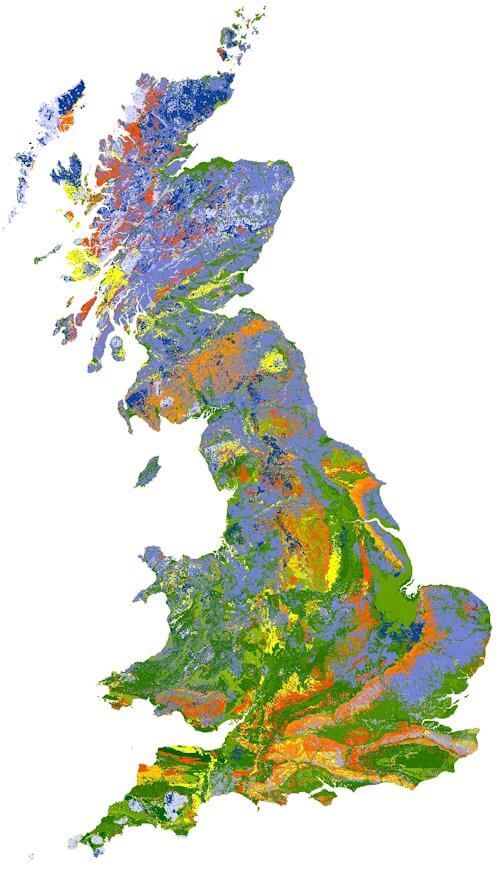

This theme provides information on the discontinuities in bedrock and superficial deposits as part of a suite of GIS layers for different engineering parameters.

The spatial model covers England, Scotland and Wales at 1:50 000 scale and is based upon bedrock and superficial geology from BGS Geology 50K.

Discontinuities within rocks and soils are an important factor in all engineering activities.

What are discontinuities?

For the purposes of this engineering theme in BGS Civils, discontinuities are defined as ‘any break in the continuity of a rock mass that has the potential to have zero or very low tensile strength’.

As such the theme includes all stratification planes (bedding; layering; lamination), all foliation planes (fissility; cleavage; banding) and all fractures (joints; faults; fissures) as defined in BS5930 and ISRM.

It will not include interfaces (other than stratification planes or depositional interfaces) and chemical-solution breaks (such as solution cavities) that are included within the BGS discontinuity classification system. (No further reference shall be made to the BGS discontinuity classification system as it is not considered appropriate for engineering geology applications.)

Classification

The discontinuity parameters proposed for attributing the BGS Civils: discontinuities dataset are:

  • stratification planes:
    • lamination
    • bedding
    • layering
  • foliation:
    • bedding plane fissility/slaty cleavage
    • lineation/linear schistosity
    • schistose foliation
    • gneissose foliation
  • rock mass:
    • massive
    • blocky
    • tabular
    • columnar
    • irregular
  • additional discontinuities:
    • fissured
    • sheared
    • sheet/exfoliation joints

As previously stated, not all stratification planes and foliation planes are mechanical discontinuities. However, at the scale proposed, it would not be possible to differentiate between those that are and those that are not. As such, it is proposed that all potential discontinuities within the rock mass be described.

Download BGS Civils discontinuities sample data

Thank you for your interest in our digital data. BGS is constantly reviewing and developing our suite of data products and we value feedback from users to ensure that we are meeting their needs. Understanding how our data is being used also helps us to tailor future development plans and verify that we are providing data in the correct formats.

Before you download the data, we would really appreciate some feedback on how you plan to use BGS Civils data. The information provided through this form is anonymous and will only be used by BGS and our partners to improve our products and services. It will be held securely and will not be used to identify any individual. For details on how we use your information, please view our privacy notice.

What sector do you work in?(Required)
