Infiltration SuDS map

Key information

Scale:
1:50 000
Coverage:
Great Britain
Availability:
Licensed
Format:
GIS polygon data. (ESRI, MapInfo, other available by request)
Price:

Product 1: BGS infiltration SuDS map: detailed £1.50 per km2

Product 2: BGS infiltration SuDS map: summary £0.50 per km2

Product 3: BGS Infiltration SuDS map viewer (subscription service) £2500 p.a.

All products are subject to number of users, licence fee and data preparation fee.

Uses:
Local-level to regional-level use

Get data

Free access

Our free data is available under the Open Government Licence. Please acknowledge reproduced BGS materials.

View demo

This dataset is suitable for those involved in the planning and design of sustainable drainage systems (SuDS) and for those who approve SuDS planning applications within local authorities.

Quick links to information on SuDS map products:

The dataset gives a preliminary indication of the suitability of the ground for infiltration SuDS. These are drainage systems that allow surface water to infiltrate to the ground, such as soakaways, infiltration basins, infiltration trenches and permeable pavements. The selection and design of an appropriate system depends on the properties of the ground and in particular these four factors:

  • the presence of severe constraints that must be considered prior to planning infiltration
  • the drainage potential of the ground
  • the potential for ground instability when water is infiltrated
  • the protection of groundwater quality

The BGS Infiltration SuDS map is based on 15 nationally derived subsurface property datasets, some of which are a result of direct observations, whilst others rely on modelled data.

The dataset is structured using the four factors and allows consideration of:

  • subsurface permeability
  • depth to groundwater
  • presence of geological floodplain deposits
  • presence of artificial ground
  • ground stability:
    • soluble rocks
    • collapsible ground
    • compressible ground
    • running sand
    • shallow mining
    • landslides
    • shrink–swell clays
  • potential for pollutant attenuation
  • the Environment Agency’s source protection zones

SuDS map products

Detailed: BGS infiltration SuDS map

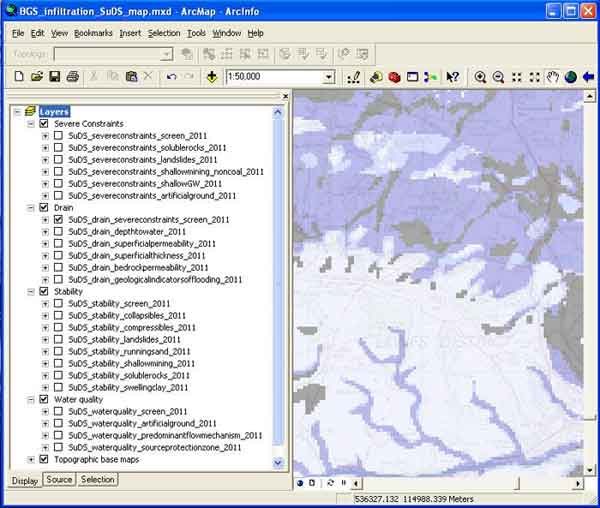

The detailed map provides the data layers described along with a further 20 individual, bespoke data layers. These data layers provide information on the properties of the ground, which can be used to guide local SuDS planning and design.

The data can be used to determine the likely limitations present at a site and make preliminary decisions on the type of infiltration SuDS that may be appropriate. We anticipate that this map will be used by planners, developers, consultants and SuDS Approval Bodies.

The dataset is intended to be used at a preliminary stage and is not a replacement for a site investigation.

Summary: BGS infiltration SuDS map

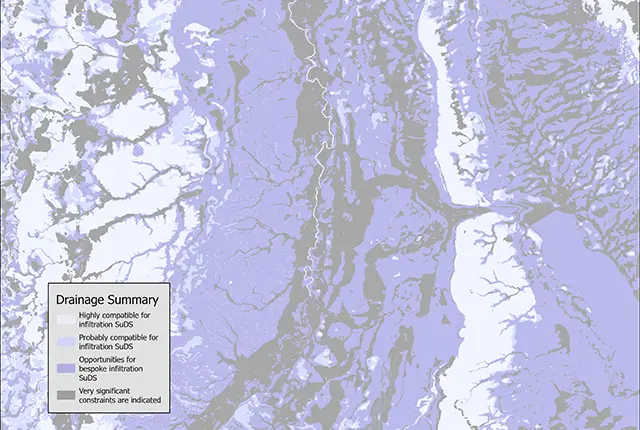

The summary map comprises four summary layers, providing an indication of the suitability of the ground for infiltration SuDS. The layers summarise:

  • presence of severe constraints
  • drainage potential of the ground
  • potential for ground instability as a result of infiltration
  • susceptibility of the groundwater to contamination

This map is anticipated to be of use in strategic planning and not for local assessment. It does not provide specific subsurface data or state the limitations of the subsurface with respect to infiltration.

BGS infiltration SuDs map viewer (subscription service)

A sample is provided to demonstrate the type and range of data incorporated into the map. The drop-down menu allows you to select a data layer, which can then be interrogated by clicking on the map. To obtain more information about the datasets, click on the dataset name.

The BGS infiltration SuDS map viewer is a subscription-based, web-view service that provides access to the full national coverage of the BGS infiltration SuDS map. The user can query any of the 24 data layers and download attribute data in either .CSV or .PDF format.

Access is gained via a username and password. These login details can be shared within the subscribing organisation, but only one person can be logged into the service at any one time.

The BGS infiltration SuDs map viewer has been developed for those who work nationally and don’t need access to GIS shapefiles.

Get in touch

For more information about our datasets, technologies and map viewers please contact us
